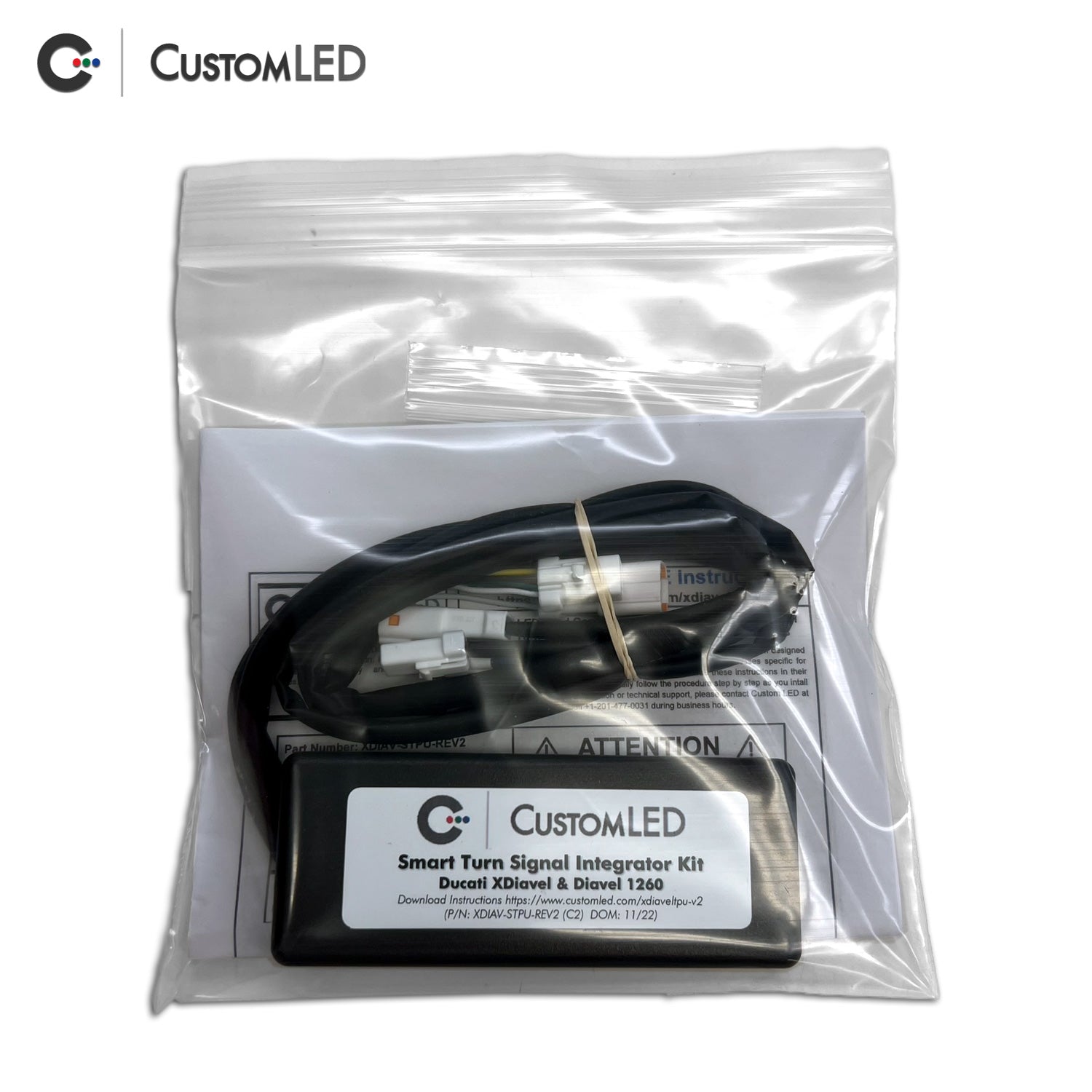

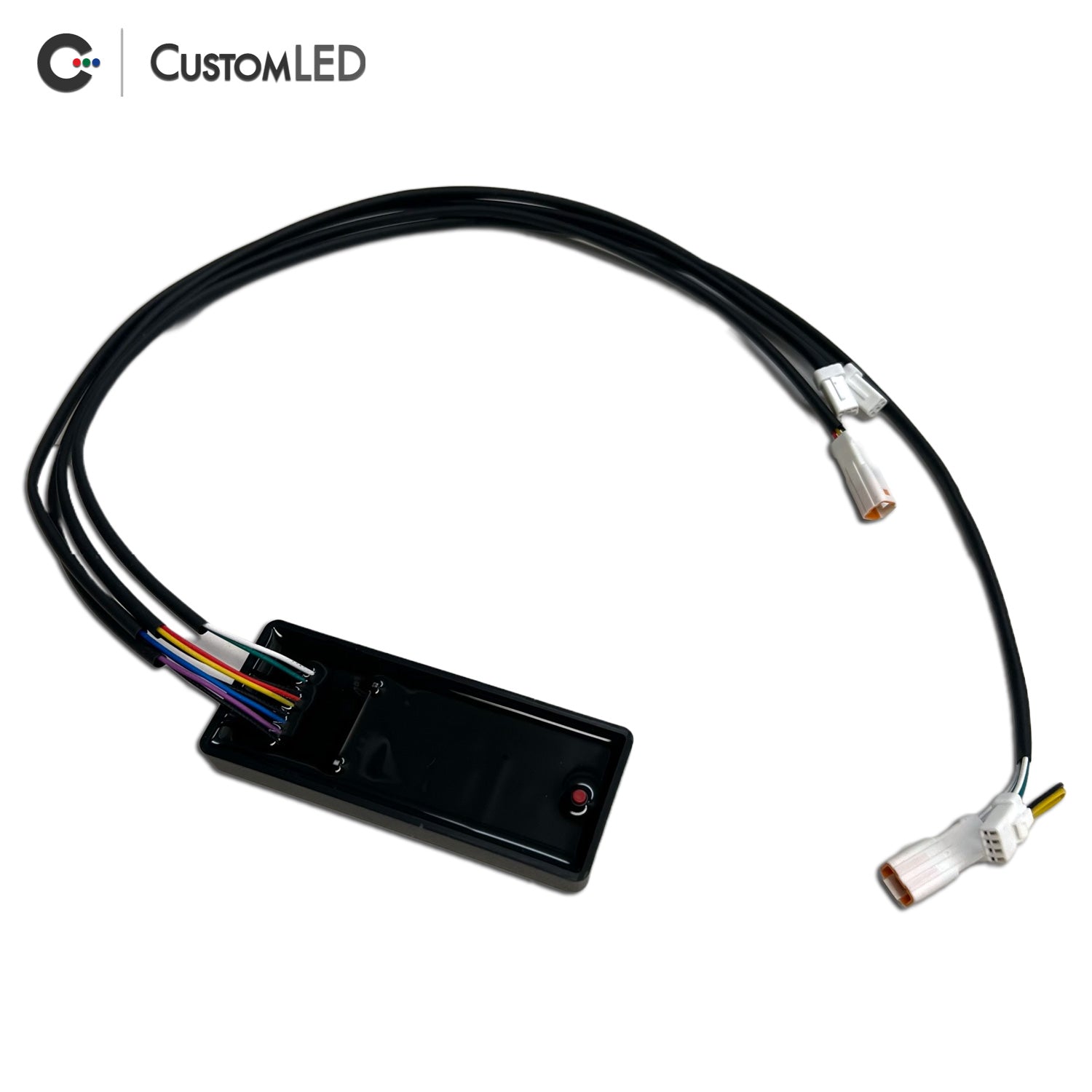

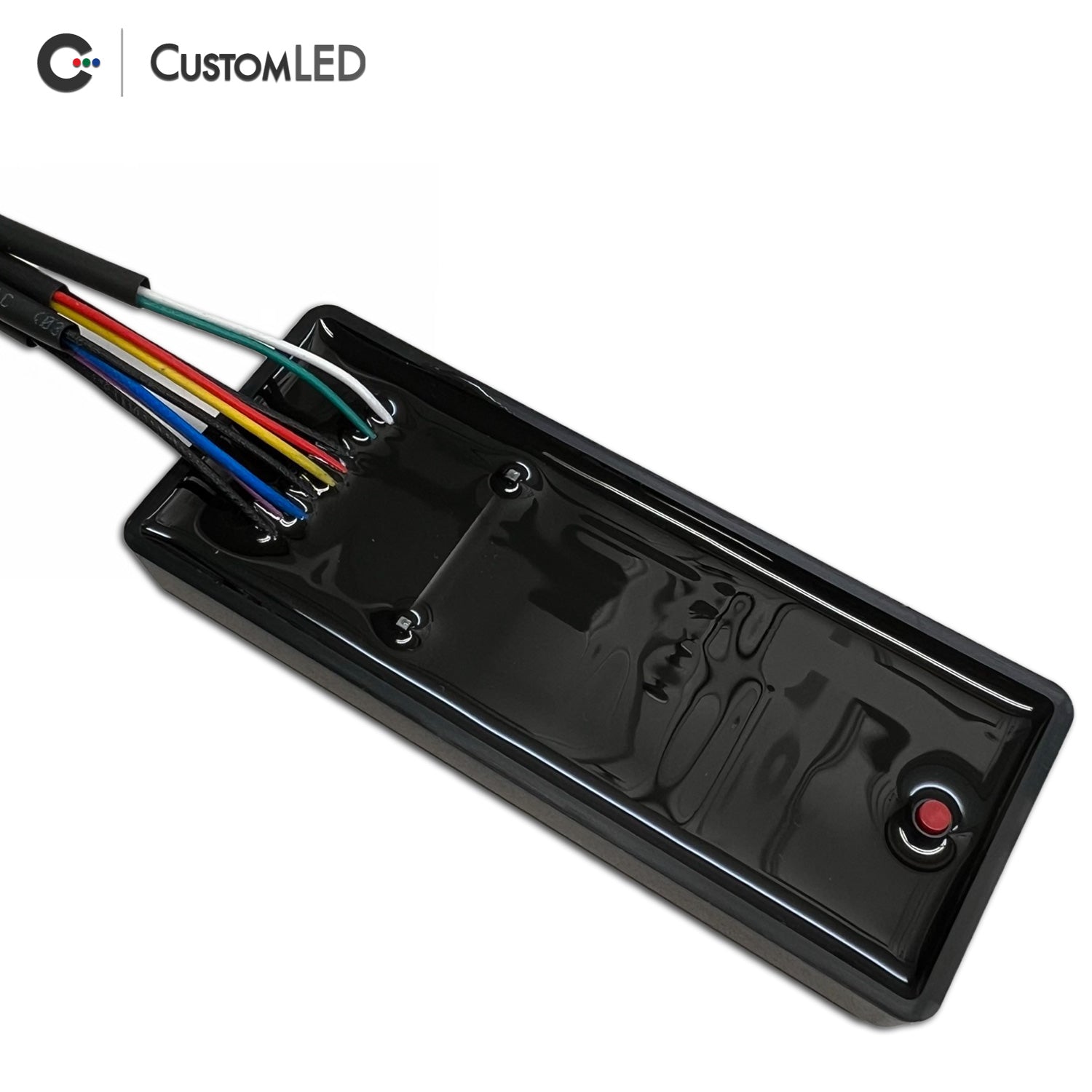

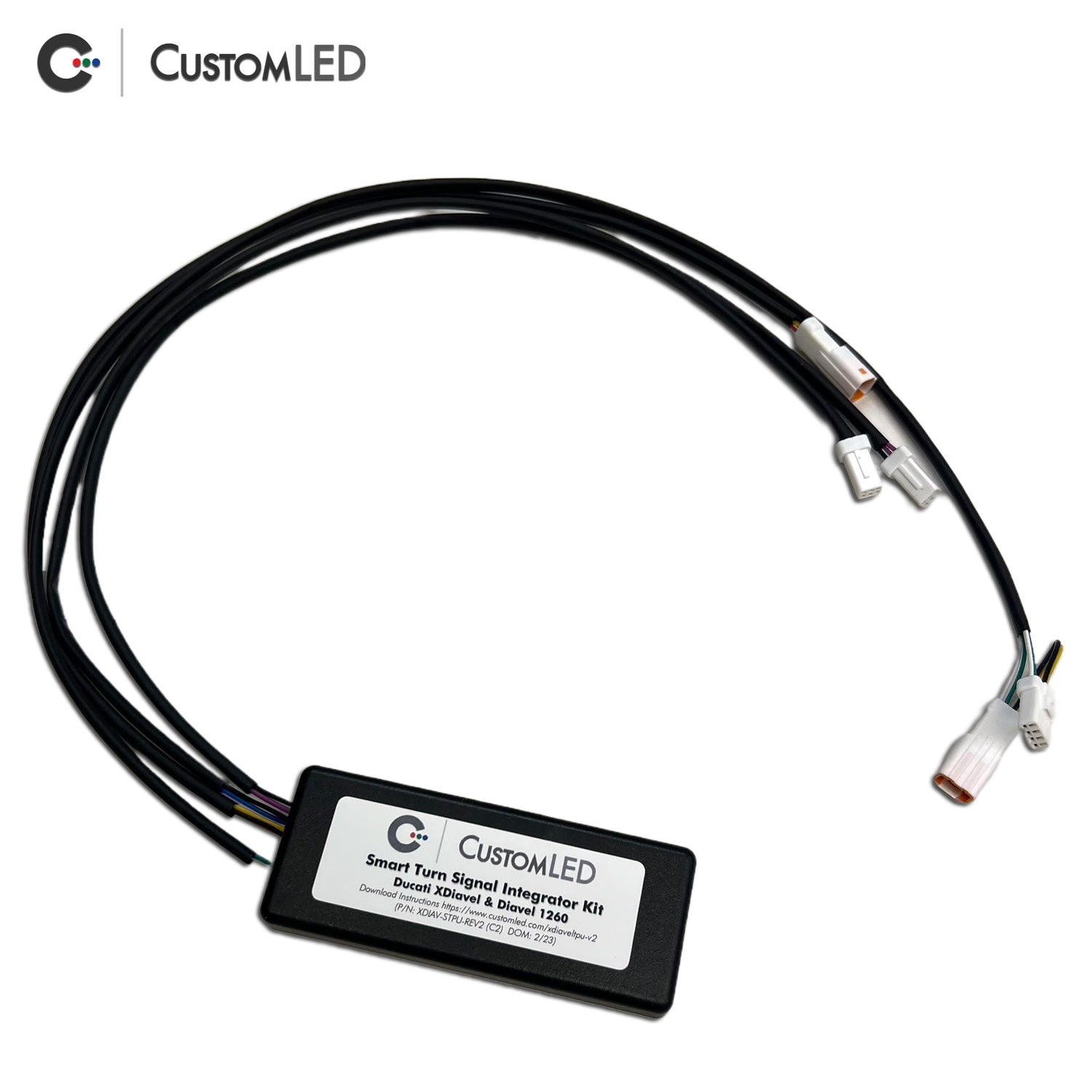

Ducati XDiavel Smart Turn Signal Integrator Kit

The XDiavel Smart Turn Signal Integrator Kit is a model-specific Smart Triple Play module and CanBus compatible wiring harness specific for installation on the Ducati XDiavel. This complete Plug & Play kit converts the factory rear run/brake lights to operate as run, brake and turn signals in the most effective way possible.  The installation is fully reversible - no cutting or splicing at all.

2nd Generation kit Advanced features include: awesome startup sequence, built-in 11-pattern brake modulator which can also be disabled, adjustable running light brightness, Strobe Mode!, Demo Mode, and full-contrast blinker function (from full off to full bright).  This type of Brake Light Modulation has been a huge success with our Brake Alert feature found in our Blaster-X line of integrated tail lights.

• Designed to be fully compatible with the XDiavel specifically.

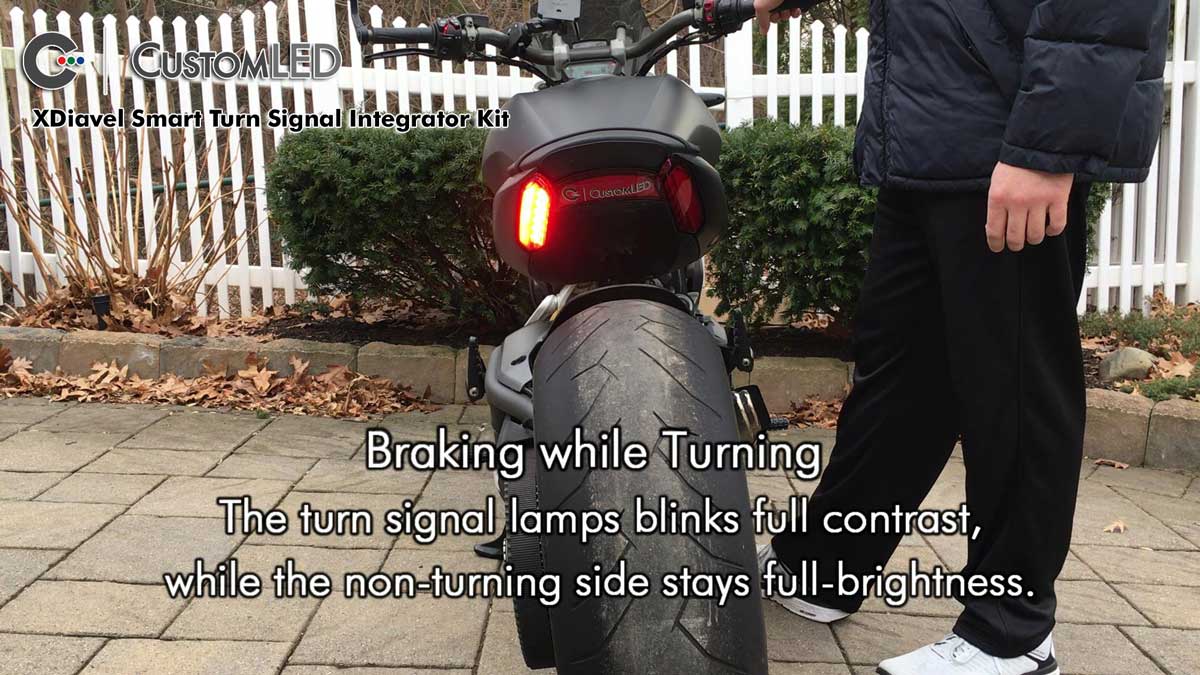

• Allows existing factory brake lights to function as running light, brake light and turn signals.

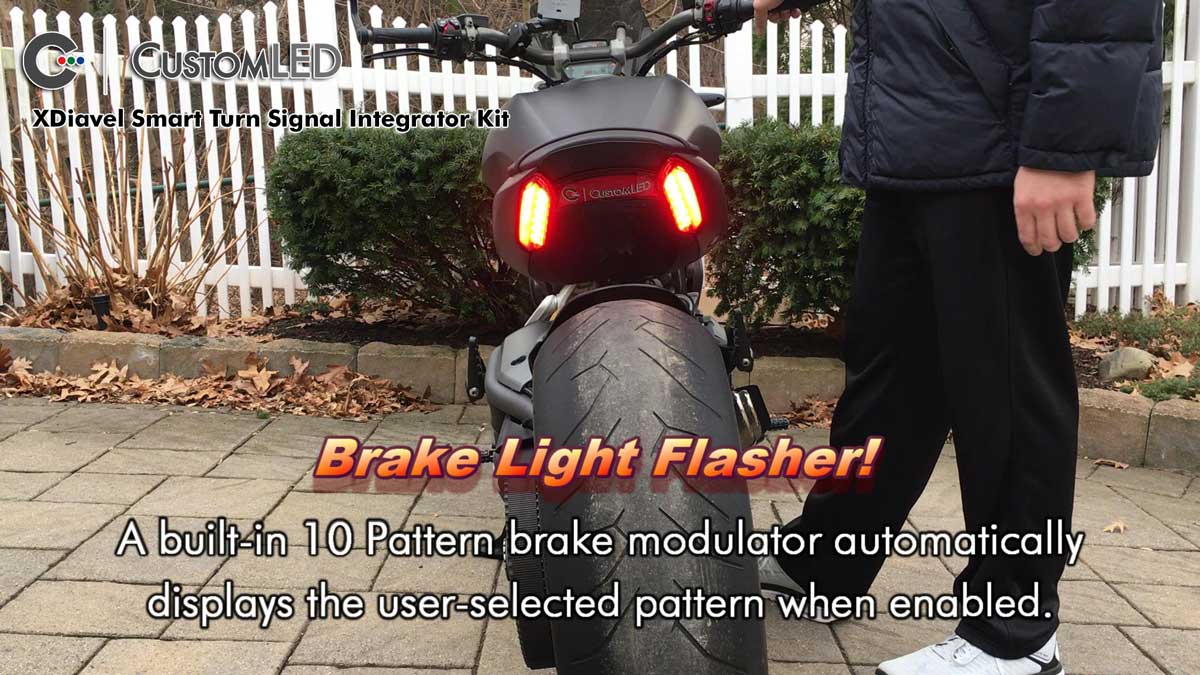

• Built-in 11 pattern brake modulator.
• Works in conjunction with the factory turn signal lamps as well if desired.

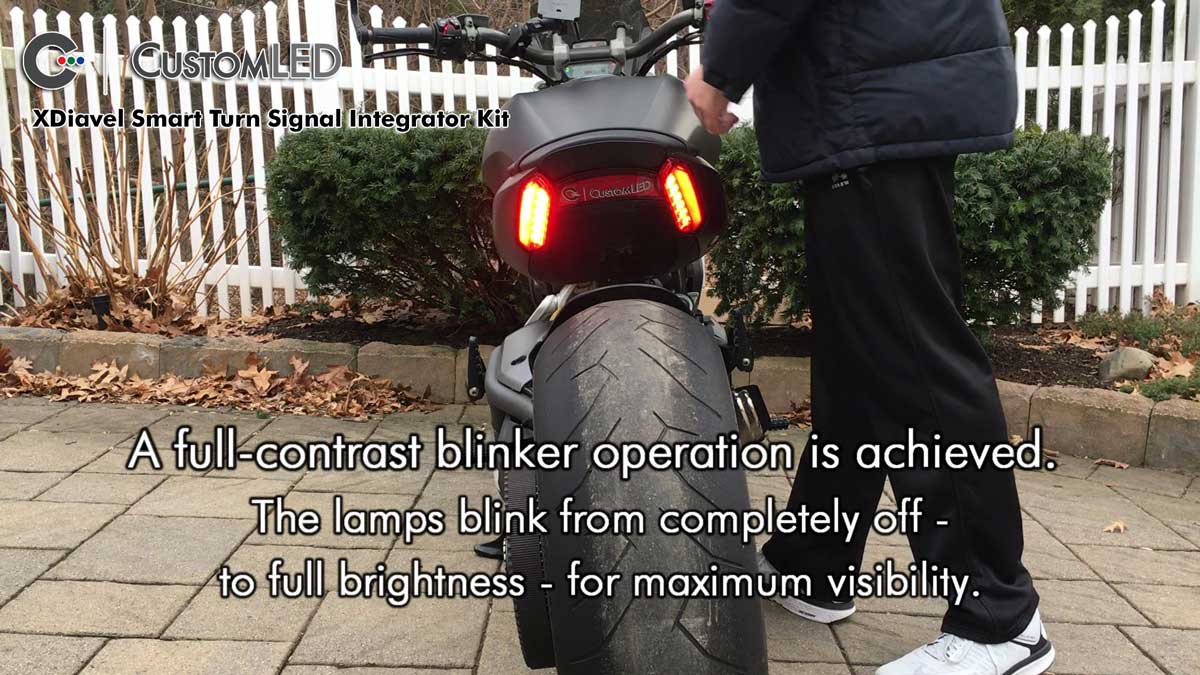

• Full-Contrast blink function allows blinker lamps to blink from OFF to FULL BRIGHT for maximum visibility.
• Supports ignition-off hazard function.
• Strobe Mode!
• Slim-line compact and water-resistant construction 3.9" x  1.6"  x  0.6".
• Comes with detailed instructions.
• Plug & Play connectivity.
• Full CANBus system compatibility.
• US PATENT 8,588,997.
• Made in the USA.
• 2-Year manufacturers warranty.

• Enable or Disable the Startup Sequence.
• Set the Brake Alert Pattern.
• Set the Running Light Brightness (within a preset range).
• Engage Strobe Mode (Useful for Parades, Police Operations, and Bike Shows).
• Enter Demo mode (Useful for Bike Shows and Displays).
• Reset Factory Defaults.

• Pattern 1: Four Flashes then Solid.
• Pattern 2: Four Flashes, Solid for 3 Seconds, Repeat.
• Pattern 3: Seven Flashes then Solid.
• Pattern 4: Seven Flashes, Solid for 3 Seconds, Repeat.
• Pattern 5: Quad Strobe, Solid for 1 Second, Quad Strobe, Solid.
• Pattern 6: Quad Strobe, Solid for 1 Second, Quad Strobe, Solid for 3 Seconds, Repeat.
• Pattern 7: Strobe Mode Cycle for 3 Seconds, Solid.
• Pattern 8: Strobe Mode Cycle, Solid for 3 Seconds, Repeat.
• Pattern 9: 4 Quick Strobes, Solid (Factory Default).
• Pattern 10: 10 Quick Strobes, Solid.
• Pattern 11: Constant Quick Strobes (while braking).
• Pattern 12: No Brake Alert (solid red).

The videos in this playlist are user-submitted and original videos related to this product. Use the button in the player to cycle through them.

Note: Some videos may show the xDiavel and some the Diavel 1260 — the kit functions the same on both motorcycles. Some videos may be of the Gen 1 kit and others of the Gen 2 kit.

The Ducati XDiavel Smart Turn Signal Integrator Kit is installed on the motorcycle according to the detailed instructions below.
