Blinker Genie - Pre-Wired for Yamaha Motorcycles (pair)

The Custom LED Blinker Genie is designed to allow single filament light bulbs, and single intensity LED lamps, to function as both running lights AND blinkers on Motorcycles!

This Blinker Genie is designed for use on certain Yamaha Motorcycles.  Visually compare the turn signal connector on your OEM turn signals before ordering, and be sure that your OEM turn signals function as run and turn from the factory.  This excludes some late-model bikes.  If you have any questions, please contact us before ordering.

For Automobile applications, check out our Blinker Genie 2!

Most aftermarket LED blinkers support only a two wire connection, which means they can only be used as either a running light, or a blinker light.  The Blinker Genie solves this problem, and intelligently controls the lamp to function as BOTH a running light and a blinker!

Properly connect any two-wire incandescent or LED indicators to the Custom LED Blinker Genie, and your indicator bulbs/LEDs will now stay on constantly as running lights, and blink when you engage the blinkers!  (Note: the indicator will turn off for the duration of the blinker pulse - this is how the blinking is achieved.)

The Custom LED Blinker Genie is designed to be as small as possible while being as versatile and robust as possible.  The finished dimensions of the unit will measure approximately 0.7" x 1.25" X 0.25" and can support up to 12A of current (see specifications)!  This ensures our product will work for any application (blinking your headlights individually, or powering one single LED lamp for instance).  To further ease installation and ensure dependability, the Custom LED Blinker Genies are water resistant.

Each Blinker Genie controls up to 2A worth of lamps in the recommended configuration.  The Blinker Genie's are sold IN PAIRS.  One will be required for each side of the motorcycle, and for every 2A worth of operated indicator load (25W).

For most applications, they are used in the front to drive two wire LED indicators.  Technically, if you ran wires to the back, you could control the rear blinker lamps with the Blinker Genies as well.  However, it is recommend that you use one Blinker Genie for each "corner" of the vehicle.

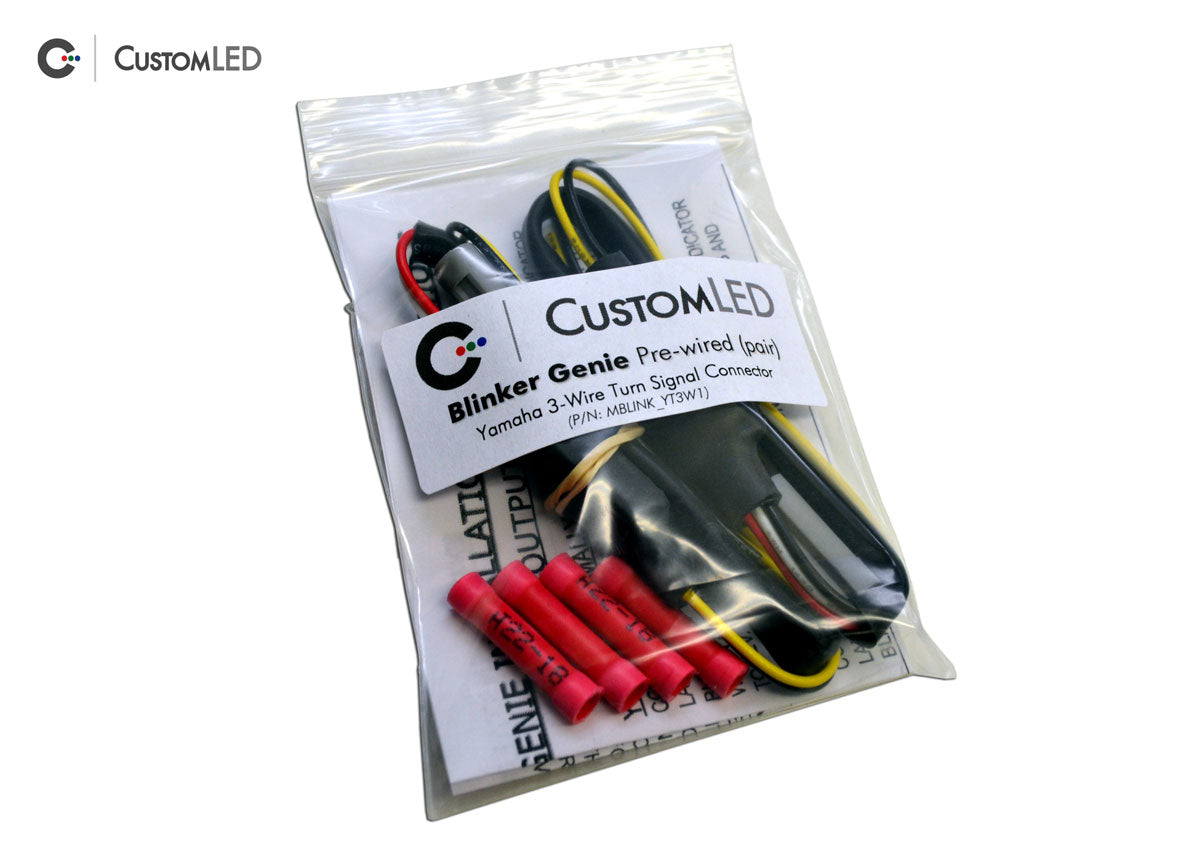

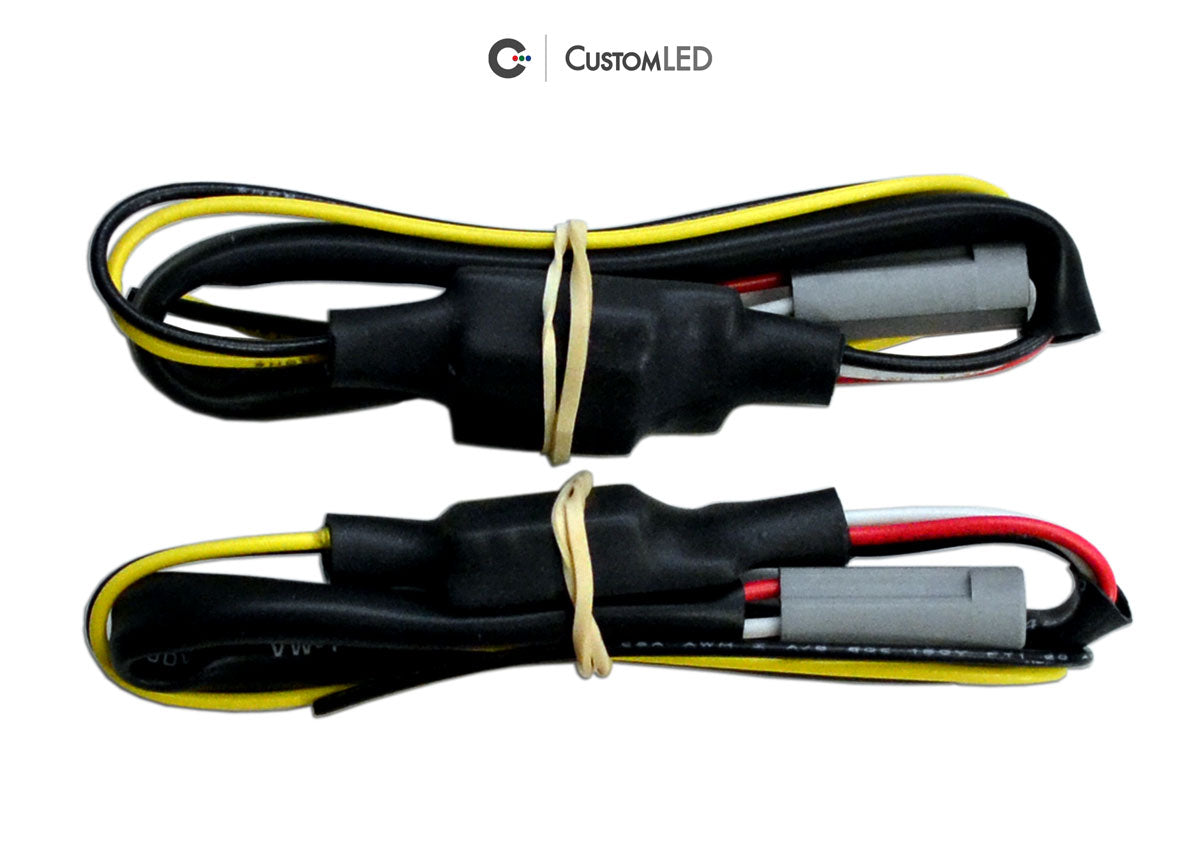

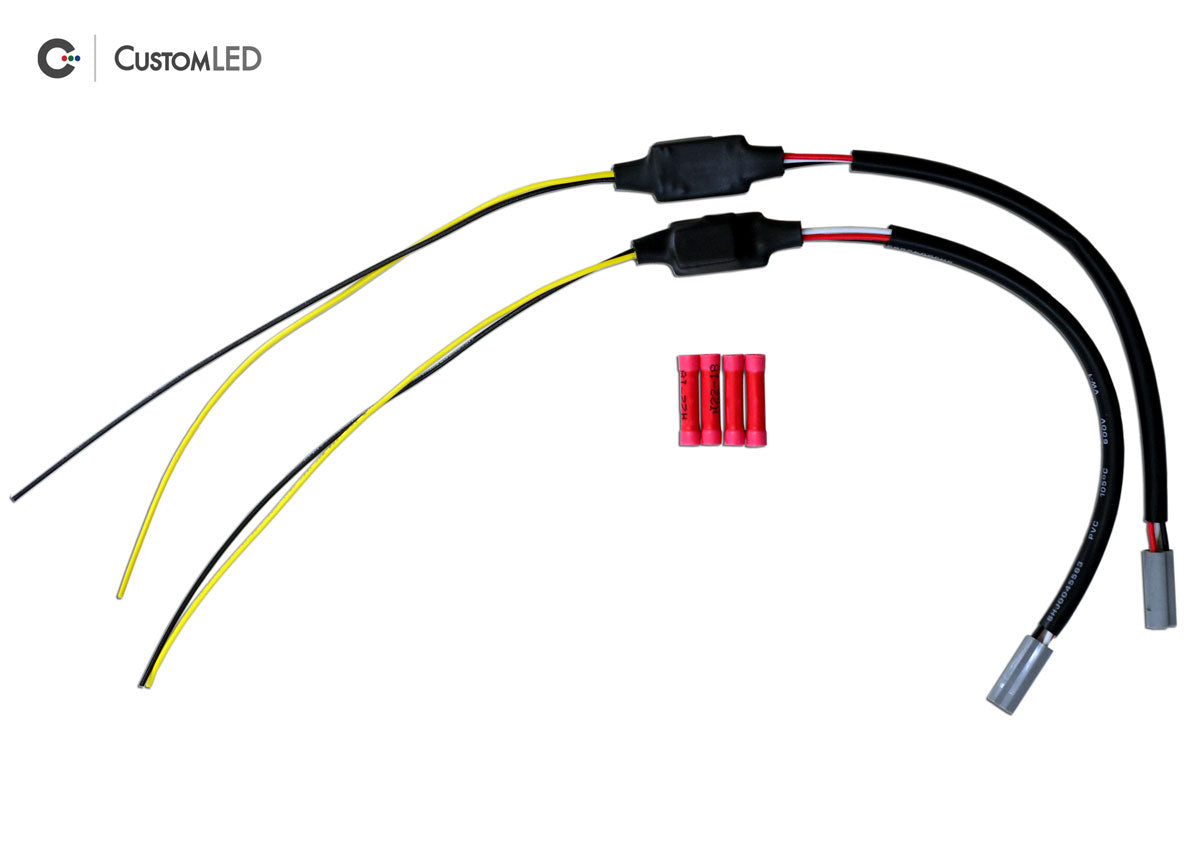

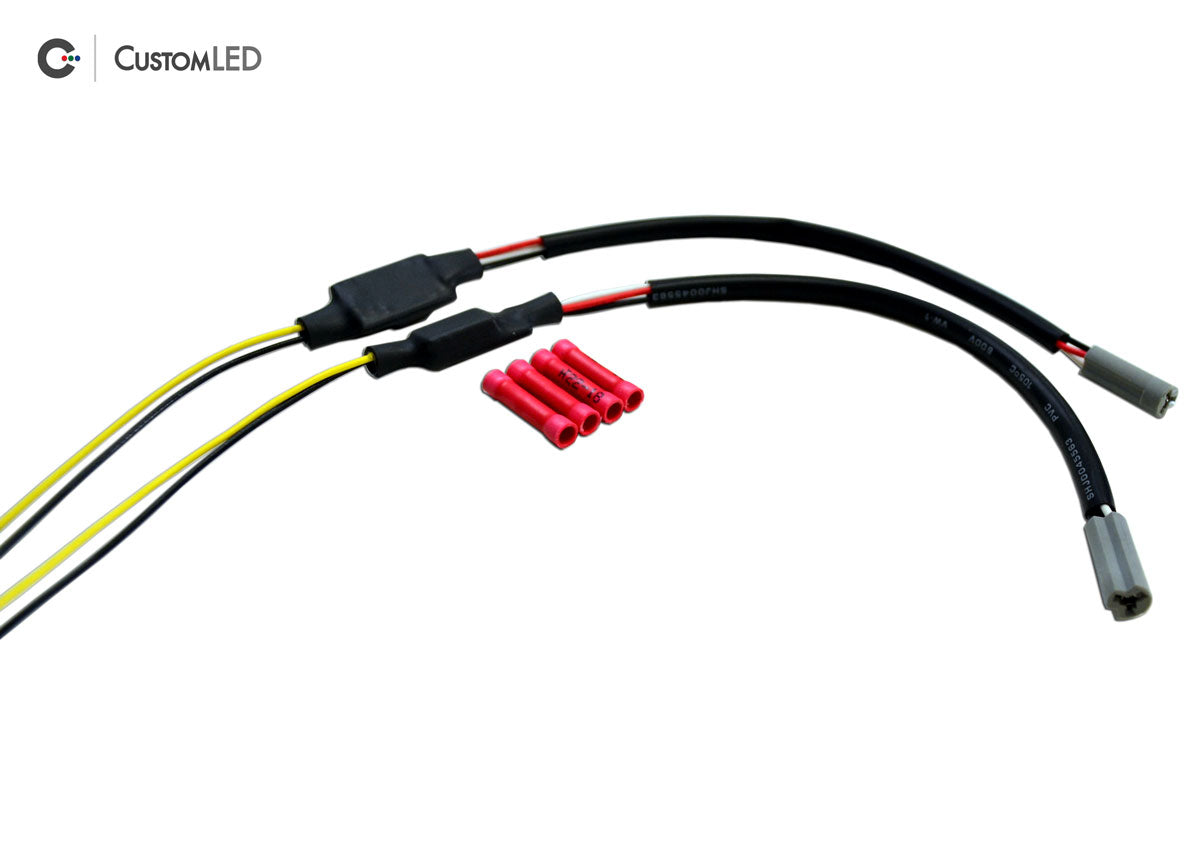

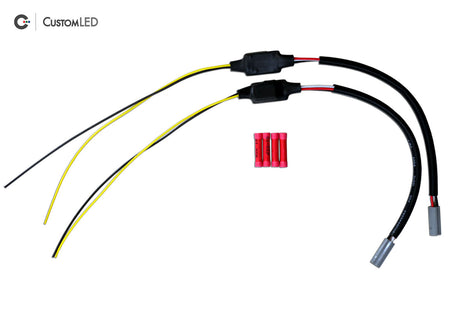

This Blinker Genie comes with the OEM connectors pre-wired as shown, 7" wires and butt-connectors for connection to the lamp, and detailed installation instructions!  Please read the important notes in the Installation Tab for other accessories that may be required to maintain proper function of the blinker system after installing the Blinker Genie.

• Made in the USA
• New high-speed solid state design is compatible with all flasher relay blink patterns (like our ELFR-P)
• Built-in 2 Watt Load Equalizer helps to prevent the no-blink or 4-way blink condition (some bikes)
• Comes as a complete kit with electrical connectors and detailed instructions
• Works with LED or incandescent indicators
• Completely water proof
• 1-Year Warranty & Satisfaction Guarantee

• Maximum Recommended Indicator Load: 2A (25W)
• Maximum Switching Current: 12A
• Internal Resistance: 0.18 OHMS
• Maximum Switching Speed:  1Mhz
• Switch type: Advanced Power Mosfet
• ONLY functions with a Negative Common Ground System (most common)

The videos in this playlist are user-submitted and original videos related to this product or motorcycle. Use the button in the player to cycle through them.

You will most likely experience the fast-blink rate if you install the Blinker Genie on your motorcycle - even if you are using the Blinker Genie along with the OEM turn signal lamps. It is important to note that the Blinker Genie effectively removes the operated lamp(s) from the turn signal circuit, as the Blinker Genie powers them through the running light circuit instead of the turn signal circuit.  This is detected as a bulb burned out by most motorcycles, and a fast-blink rate results.

The Blinker Genie only imposes a 2W load on the blinker circuit itself.  Please consider replacing your flasher relay with one of our Electronic LED Flasher Relays (preferred) or use an appropriate Load Equalizer instead (second method).

Installation of the Blinker Genie is represented in the illustration below.  Read the downloadable installation instructions below thoroughly for additional installation information.

Click icon to download.
Adobe Acrobat Reader is required to view this file.
If you are having problems viewing the file, please download the free software here.

When installing the Blinker Genie on your motorcycle, it is highly recommended that you also replace your flasher relay to maintain the normal blink rate.
