Blaster-X Control Switch

The Blaster-X Control Switch is an optional accessory for all Blaster-X Tail Lights.  This switch will allow you to conveniently control the strobe mode operation of the tail light (intense strobe cycle, like hazards on steroids), and to program advanced features of the tail light.  General Blaster-X Tail Light Programming instructions are available here.  Check the instructions for your specific Blaster-X tail light for exact features.

The Custom LED Blaster-X 2nd Generation Programming Interface allows users to easily customize features of the tail light!  The customizable features menu allows users to:

• Enable or Disable the Startup Sequence.
• Choose from 11 different Brake Alert patterns (can also disable Brake Alert).
• Adjust the running light brightness within a preset range.
• Adjust the brake light brightness within a preset range.
• Engage Demo Mode, where the tail light cycles through all functions automatically and repeatedly!
• Reset factory defaults.

This switch is not necessary for standard integrated tail light operation.

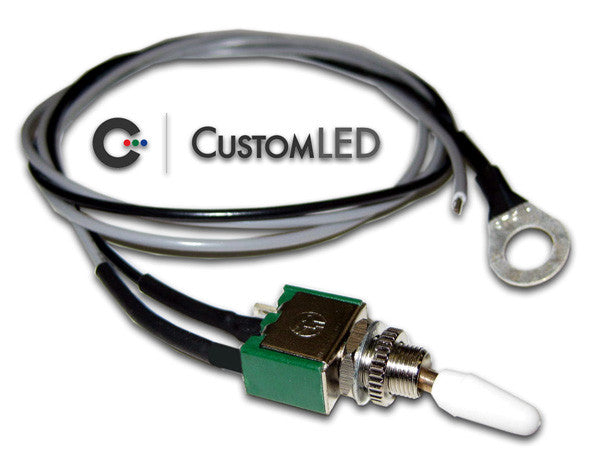

Each Blaster-X Control Switch comes with a 24" long gray wire to connect to the tail light gray wire (control/program wire), and a 16" long black wire with ring connector for ground connection at battery or anywhere on frame.

• The OFF position on the switch is for normal tail light operation.
• The MOMENTARY position on the switch is very useful for a momentary strobe-mode burst, or for programming the tail light.
• The ON position on the switch is intended for extended strobe-mode use.

The installation of the Blaster-X Control Switch is detailed in the downloadable file below.
